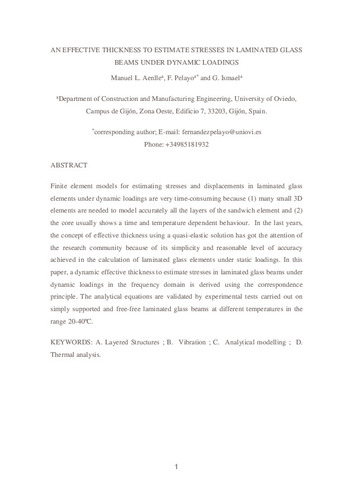

An effective thickness to estimate stresses in laminated glass beams under dynamic loadings
Subject:
Layered structuress
Stresses
Effective thickness
Vibration
Publication date:
Editorial:
Elsevier
Publisher version:
Citación:
Descripción física:
Abstract:
Finite element models for estimating stresses and displacements in laminated glass elements under dynamic loadings are very time-consuming because (1) many small 3D elements are needed to model accurately all the layers of the sandwich element and (2) the core usually shows a time and temperature dependent behaviour. In the last years, the concept of effective thickness using a quasi-elastic solution has got the attention of the research community because of its simplicity and reasonable level of accuracy achieved in the calculation of laminated glass elements under static loadings. In this paper, a dynamic effective thickness to estimate stresses in laminated glass beams under dynamic loadings in the frequency domain is derived using the correspondence principle. The analytical equations are validated by experimental tests carried out on simply supported and free–free laminated glass beams at different temperatures in the range 20–40 °C
Finite element models for estimating stresses and displacements in laminated glass elements under dynamic loadings are very time-consuming because (1) many small 3D elements are needed to model accurately all the layers of the sandwich element and (2) the core usually shows a time and temperature dependent behaviour. In the last years, the concept of effective thickness using a quasi-elastic solution has got the attention of the research community because of its simplicity and reasonable level of accuracy achieved in the calculation of laminated glass elements under static loadings. In this paper, a dynamic effective thickness to estimate stresses in laminated glass beams under dynamic loadings in the frequency domain is derived using the correspondence principle. The analytical equations are validated by experimental tests carried out on simply supported and free–free laminated glass beams at different temperatures in the range 20–40 °C
ISSN:
Patrocinado por:
The economic support given by the Spanish Ministry of Education through the project BIA2011-28380-C02-01 and BIA2014-53774-R is gratefully appreciated
